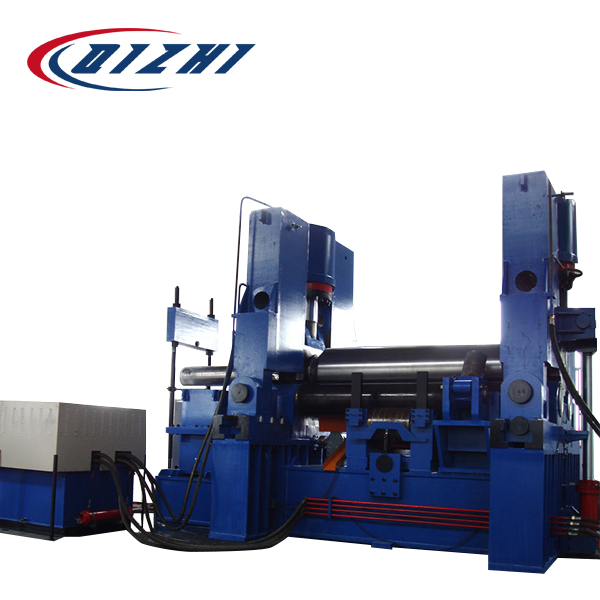

Hydraulic three-roller plate rolling machine

Short Description:

  • This machine is a fully automatic hydraulic three-roller plate rolling machine, which is used to roll the steel plate into a cylindrical shape or cone shape.
  • High rolling accuracy, no need for auxiliary equipment, and low investment. Widely used in the petroleum, chemical, boiler, shipbuilding, hydropower, metal structure, and mechanical manufacturing industries.
  • The upper roller can be vertically lifted and horizontally moved. When rolling, the motor and reducer drive the two lower rollers, and the upper roller can assist in driving.
  • Due to the constant elevation of the lower roller, it is convenient for feeding and operation.
  • PLC control. The hydraulic components used in the equipment are famous brand.
  • The equipment has high reliability, and the tipping frame adopts hydraulic tipping.
  • The equipment operates smoothly, with flexible control, no jamming, oil leakage, or abnormal noise.

Product Detail

Product Tags

Specifications

Model

Max. rolling thickness

Max. pre-rolling thickness

Plate width

Diameter of upper roller

Main motor power

（mm）

（mm）

（mm）

（mm）

（kw）

W11SNC-12x2000

12

10

2000

250

5.5

W11SNC-16x2000

16

12

2000

255

7.5

W11SNC-16x2500

16

12

2500

300

15

W11SNC-18x3000

18

14

3000

350

15

W11SNC-20x3000

20

16

3000

375

18.5

W11SNC-25x2500

25

20

2500

380

22

W11SNC-30x2500

30

25

2500

410

30

W11SNC-30x3000

30

25

3000

450

37

W11SNC-32x3000

32

28

3000

480

37

W11SNC-35x2500

35

30

2500

460

37

W11SNC-35x3000

35

30

3000

510

45

W11SNC-40x2500

40

35

2500

500

45

W11SNC-40x3000

40

35

3000

540

55

W11SNC-40x4000

40

32

4000

610

55

W11SNC-45x3000

45

40

3000

590

55

W11SNC-45x4000

45

40

4000

660

55
  • Previous:
  • Next:

    • Related Products

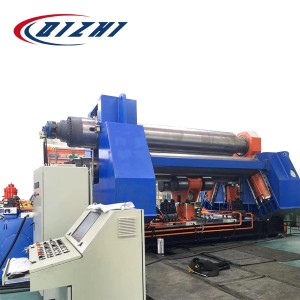

    Automatic CNC four-roller plate rolling machine

    Automatic CNC four-roller plate rolling machine

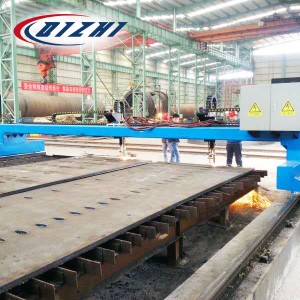

    Automatic CNC flame/plasma cutting machine

    Automatic CNC flame/plasma cutting machine

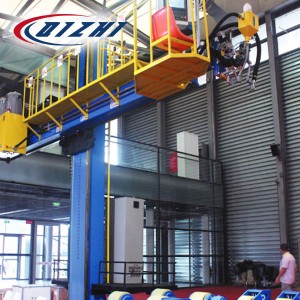

    Automatic heavy duty column and boom welding machine

    Automatic heavy duty column and boom welding ma...

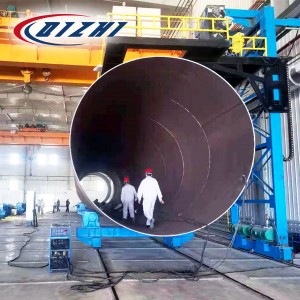

    Automatic light duty column and boom welding machine
