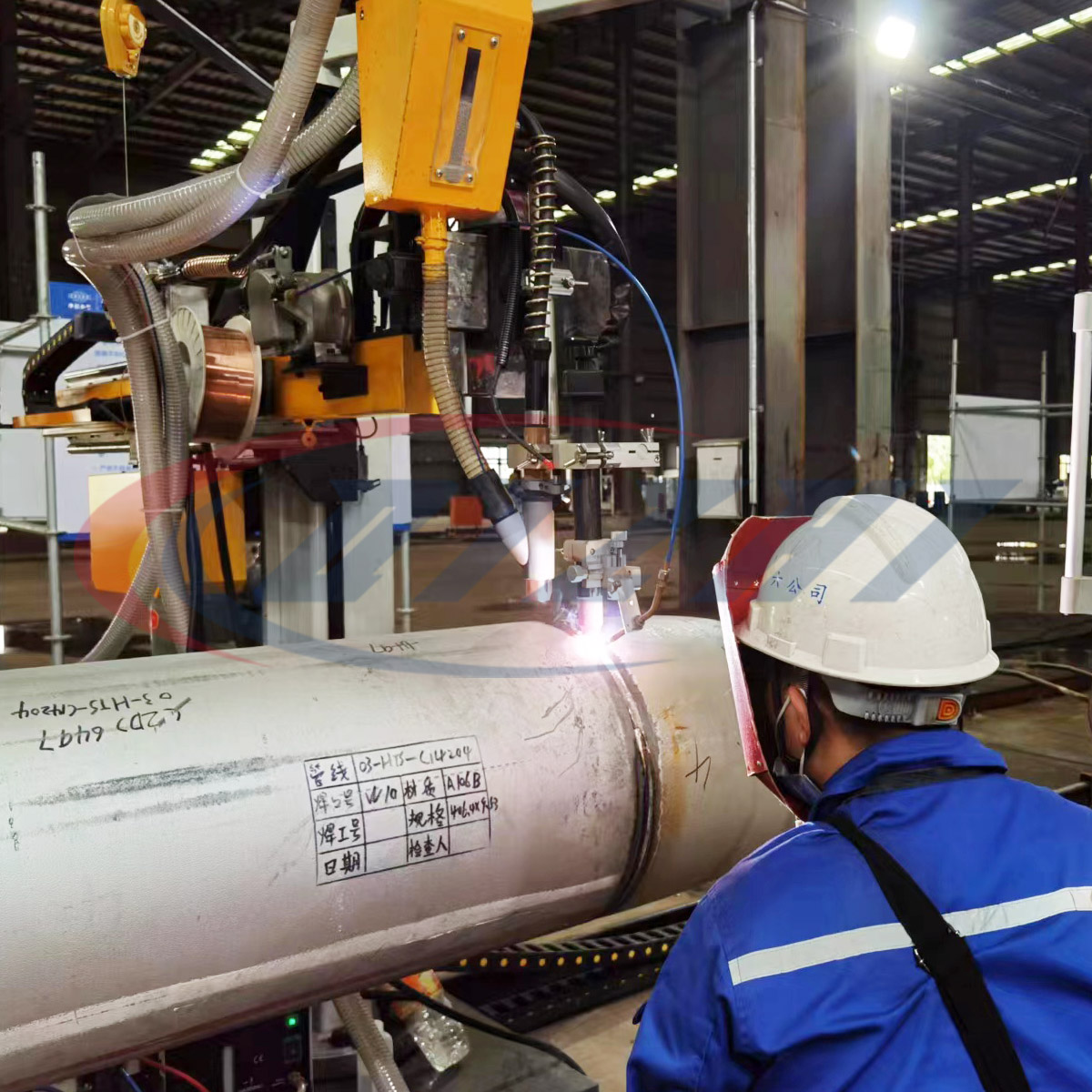

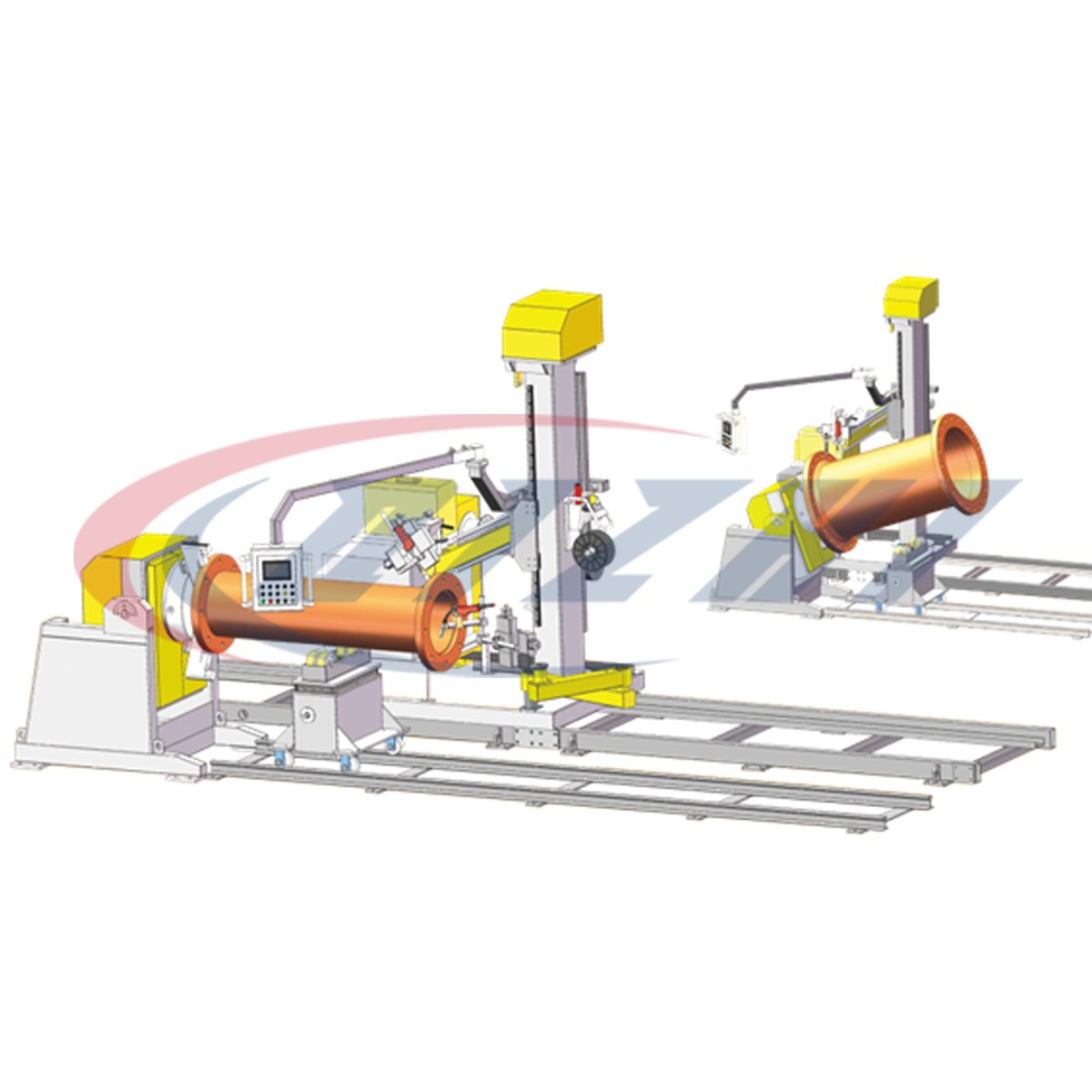

Chuck type automatic pipe welding machine

workpiece can be clamped and rotated by the chuck.
Chuck can also tilt to make corner seam in a horizontal position.
Especially suitable for short pipe spool, such as pipe and pipe, pipe and flange, pipe and elbow, pipe and reducer, pipe and tee, pipe and head, etc.

Product Detail

Model	QZPPCW-16	QZPPCW-24	QZPPCW-32	QZPPCW-40
Suitable for pipe size	DN30-400	DN50-600	DN100-800	DN200-1000
Suitable for pipe materials	CS, ALS, SS, duplex SS, low-temperature steel, heat-resistant steel, etc. can be customized for aluminum alloy, aluminum magnesium alloy
Suitable for welding seam	butt seam / corner seam
Welding process	TIG, hot wire TIG, GMAW, SAW, PAW user can choose one or multi-ypes of welding methods
Control mode	WPS welding process expert database, manual / automatic control
