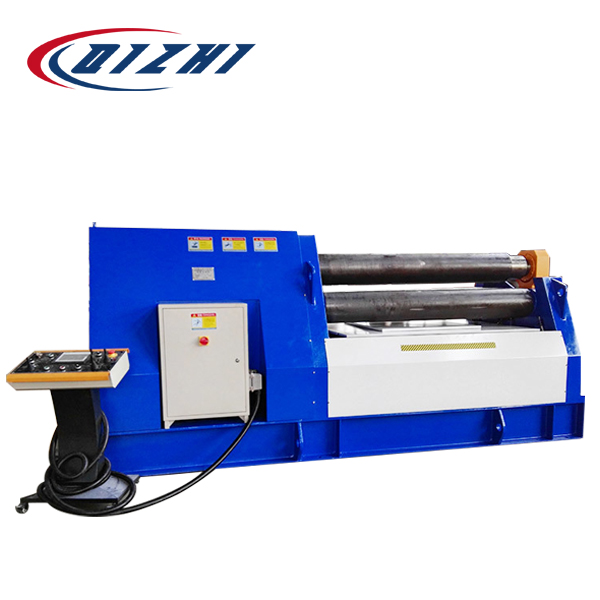

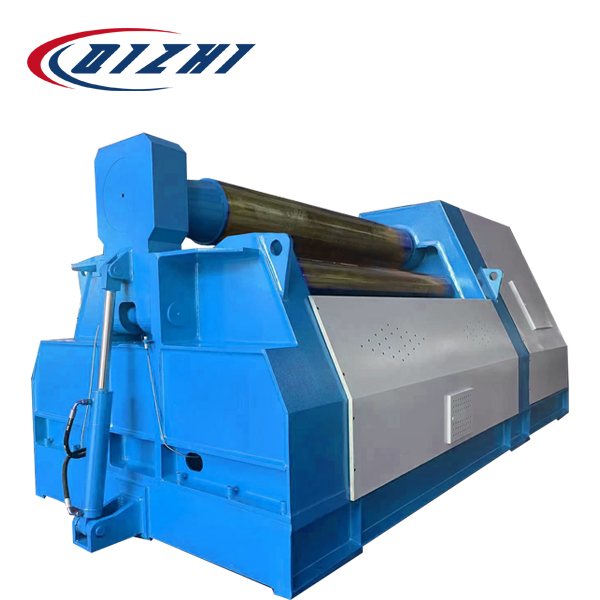

Automatic CNC four-roller plate rolling machine

Short Description:

  • This machine is a fully automatic hydraulic four-roller plate rolling machine, which is used to roll the steel plate into a cylindrical shape at room temperature.
  • The upper roller is fixed; the lower roller and both side rollers can move up and down.
  • The upper roller is the main driving roller, which provides torque for sheet rolling through its rotation.
  • The rollers on both sides are driven rollers.
  • Pre-bending is achieved by clamping the sheet with the upper and lower rollers, and lifting and lowering the side rollers to deform the sheet.
  • When rolling, the hydraulic motor planetary reducer drives the driving roller to rotate.

Product Detail

Product Tags

Specifications

Model Max. rolling thickness Max. pre-rolling thickness Plate width Diameter of upper roller Main motor power
（mm） （mm） （mm） （mm） （kw）
W12CNC 6x1500 6 4 1500 220 4
W12CNC 8x1500 8 6 1500 240 5.5
W12CNC 8x2000 8 6 2000 280 5.5
W12CNC 8x2500 8 6 2500 260 7.5
W12CNC 10x2000 10 8 2000 280 7.5
W12CNC 12x2500 12 8 2500 320 7.5
W12CNC 16x2500 16 12 2500 350 15
W12CNC 20x2000 20 16 2000 350 15
W12CNC 20x2500 20 16 2500 350 18.5
W12CNC 25x2000 25 20 2000 350 18.5
W12CNC 25x2500 25 20 2500 400 18.5
W12CNC 30x2000 30 25 2000 400 18.5
W12CNC 30x2500 30 25 2500 420 22
W12CNC 30x3000 30 25 3000 470 30
W12CNC 40x3000 40 32 3000 550 37
W12CNC 50x3000 50 40 3000 610 45
W12CNC 60x3000 60 50 3000 670 55
W12CNC 70x3000 70 50 3000 730 75
W12CNC 80x3000 80 70 3000 780 90
W12CNC 90x3000 90 80 3000 820 90
W12CNC 100x3000 100 90 3000 880 110
