Automatic nozzle cutting machine (Suspension type)

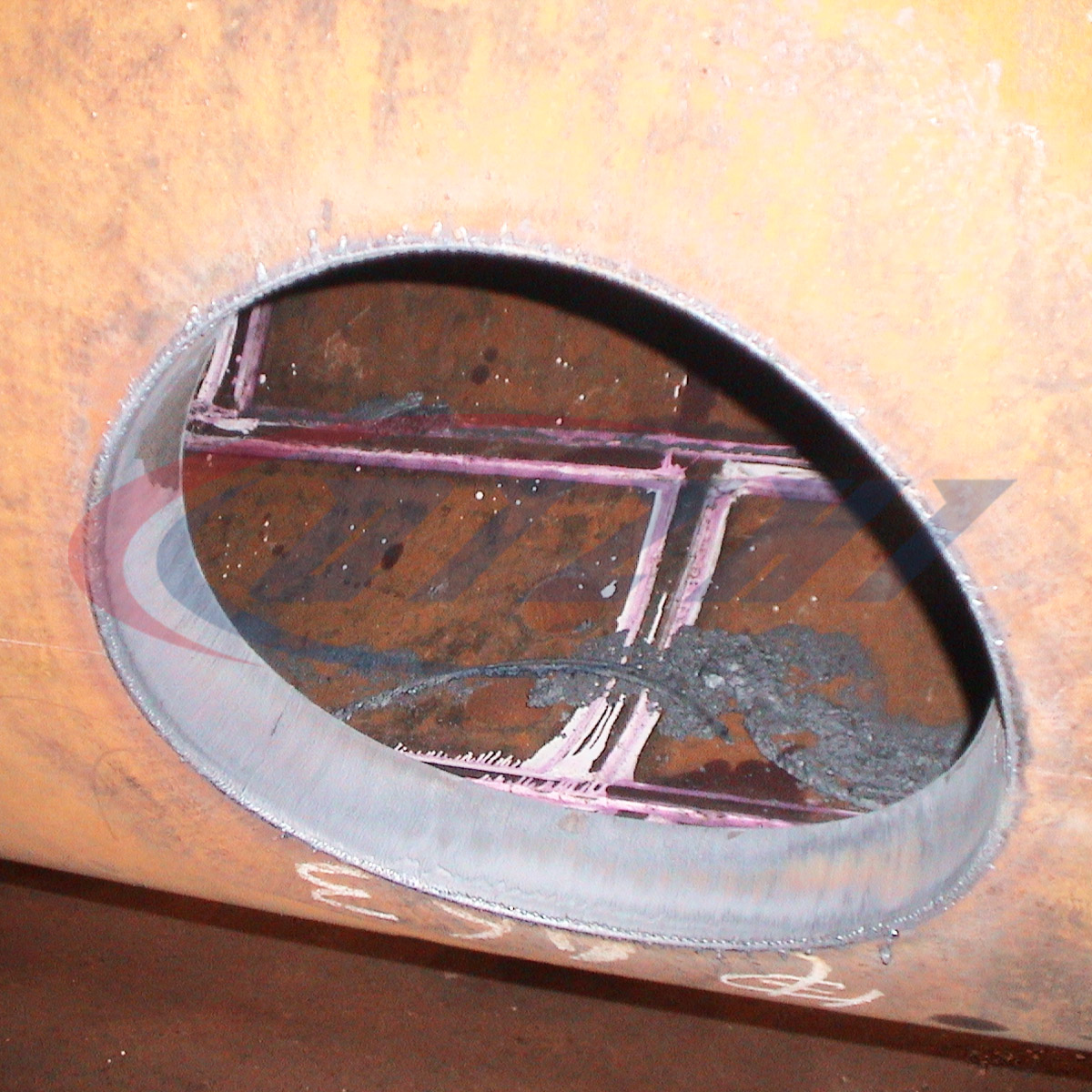

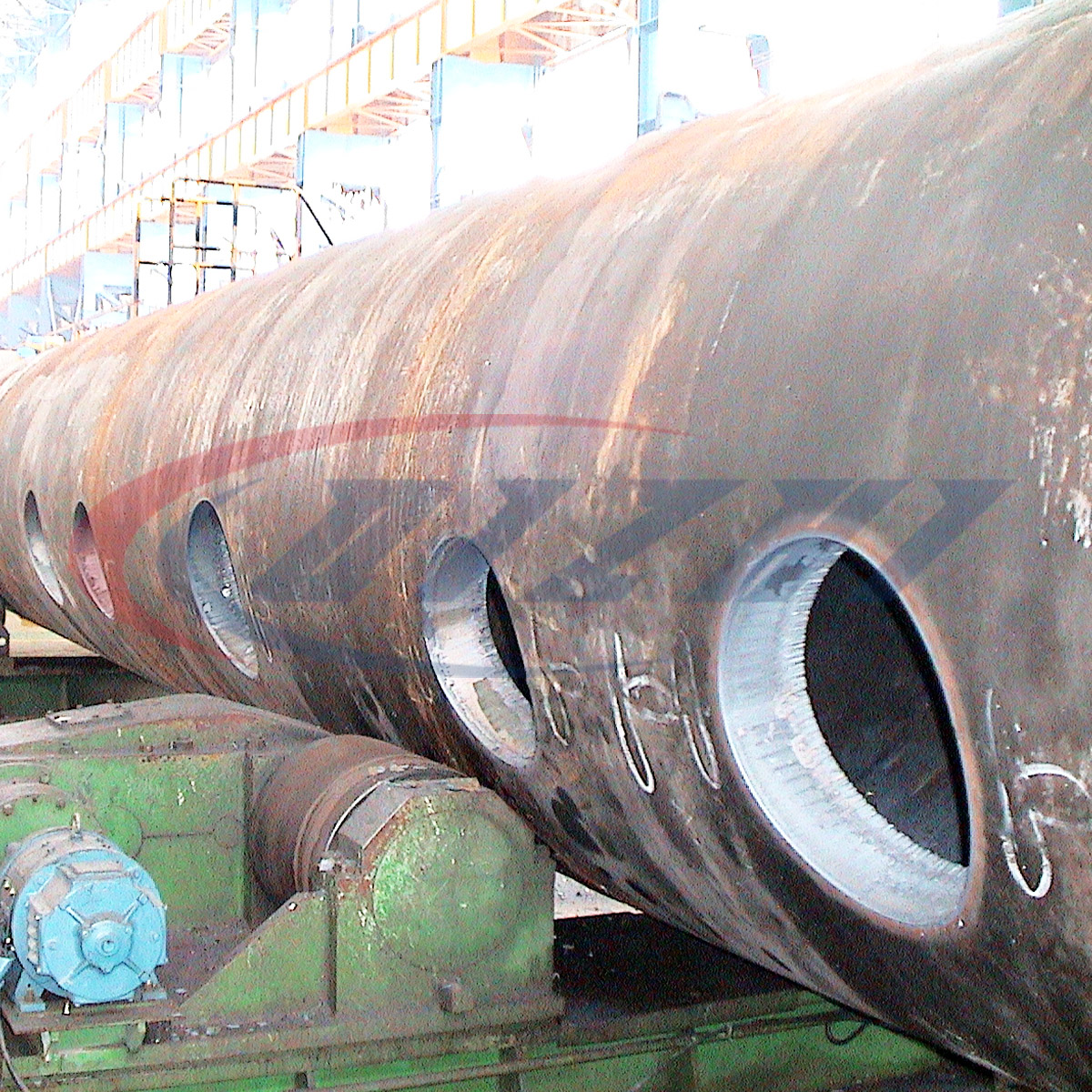

This machine is mainly used in industries such as boilers, chemical pressure vessels, nuclear power equipment, etc., where holes are opened on pressure vessels or dish ends, as well as pipe intersecting line cutting. Equipped with a CNC flame cutting system, cutting work can be completed with high quality and efficiency. It is suitable for cutting materials such as carbon steel and low alloy steel.

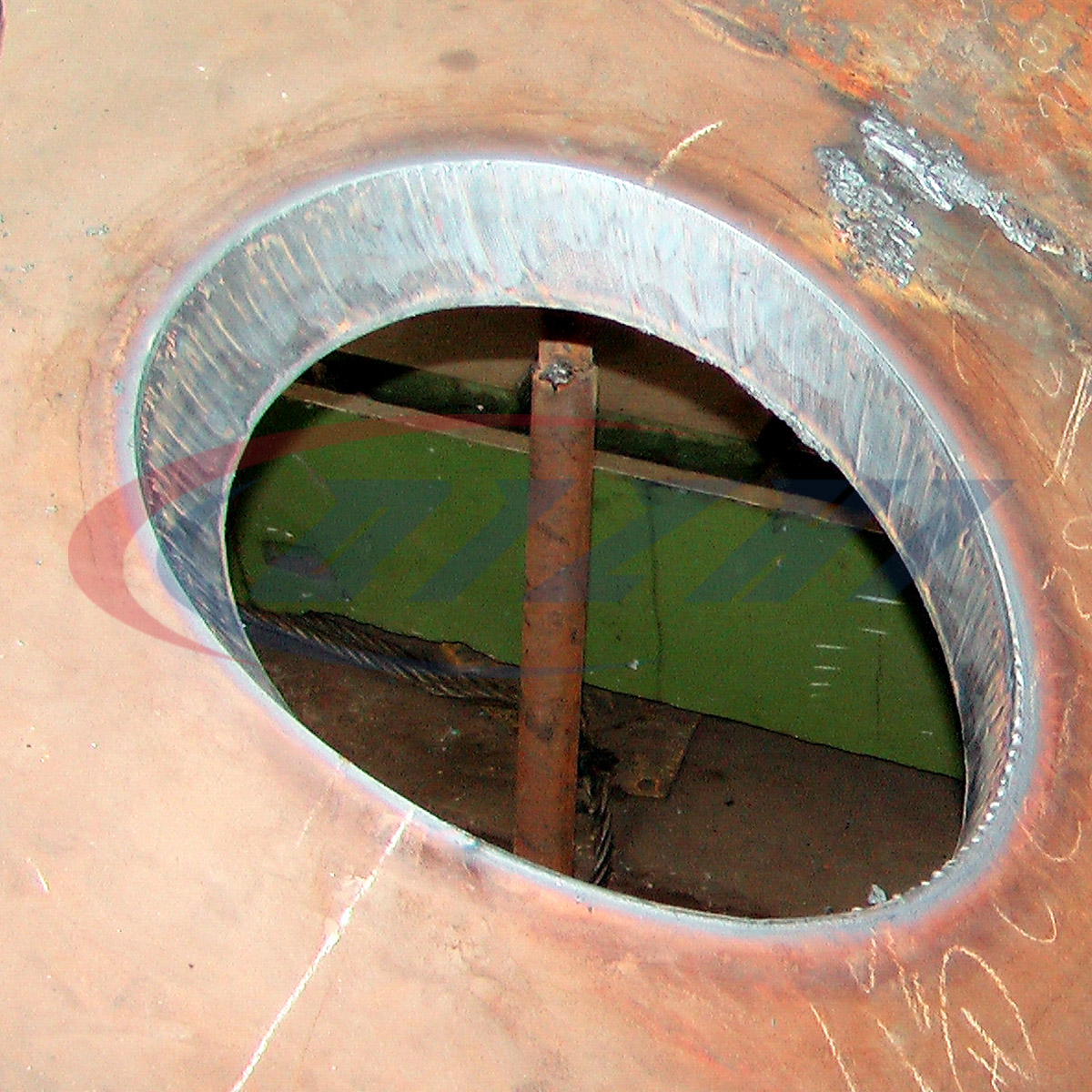

Suitable for center to center, and offset nozzle cutting.

Product Detail

Cutting capacity(dia.)	φ100～1600 mm
Max. cutting thickness	200 mm
Cross slide vertical stroke	500 mm
Cross slide horizontal stroke	350 mm
Cutting torch max. vertical stroke(Saddle drop amount)	400 mm
Connection nozzle cutting max. diameter	≤1200 mm
Connection nozzle cutting max. thickness	200 mm
Cutting hole accuracy	±5mm
Beveling angle accuracy	±0～5°
Beveling angle range	±0～50°
